Futaba S-U301 Standaard HV Servo met SBUS2 (3,9 kg , 0,16s @ 7,4V)

Futaba S-U301 Standaard HV Servo met SBUS2 (3,9 kg , 0,16s @ 7,4V)

Futaba

FPS-U301

Niet op voorraad

€ 27,90 € 23,06 excl. BTW

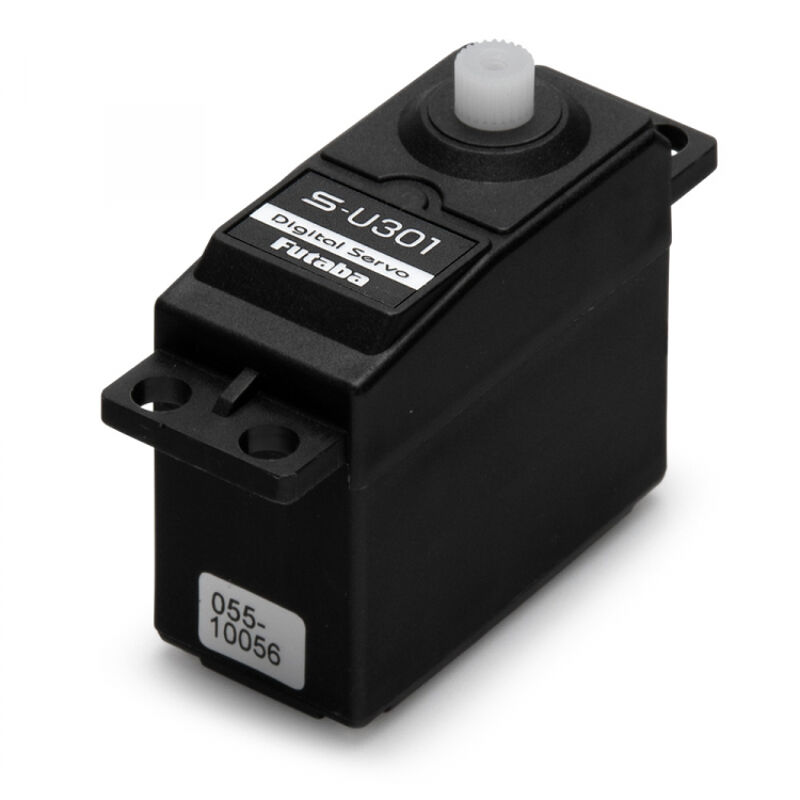

Futaba standard high-voltage servo with S.BUS(2) function

Plastic Gears
Digital / S.BUS2
Rated Voltage: 6-7.4V
Operating Voltage: 4-8.4V
Torque @ 6.6V: 3.5kg/cm
Torque @ 7.4V: 3.9kg/cm
Speed @ 6.6V: 0.18s/60°
Speed @ 7.4V: 0.16s/60°
Size: 40.5 x 20 x 36.1 mm
Weight: 36g

The S-U301 will replace these Futaba servos:

S3151
S3073HV

General Info

Brand: Futaba

Item Nr: FPS-U301

Barcode

Servo - Specs

Speed 60°/Sec @ 6.0V: 0,18

Speed 60°/Sec @ 7.4V: 0,16

Torque kg/cm @ 6.0V: 3,50

Torque kg/cm @ 7.4V: 3,90

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,50

Width (mm): 20,00

Height (mm): 36,10

Weight (g): 36,00

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 6.0V - 7.4V

Servo Protection: None

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Composite Gears

Servo Case: Composite Case

Connector: Futaba + Colored Lead
