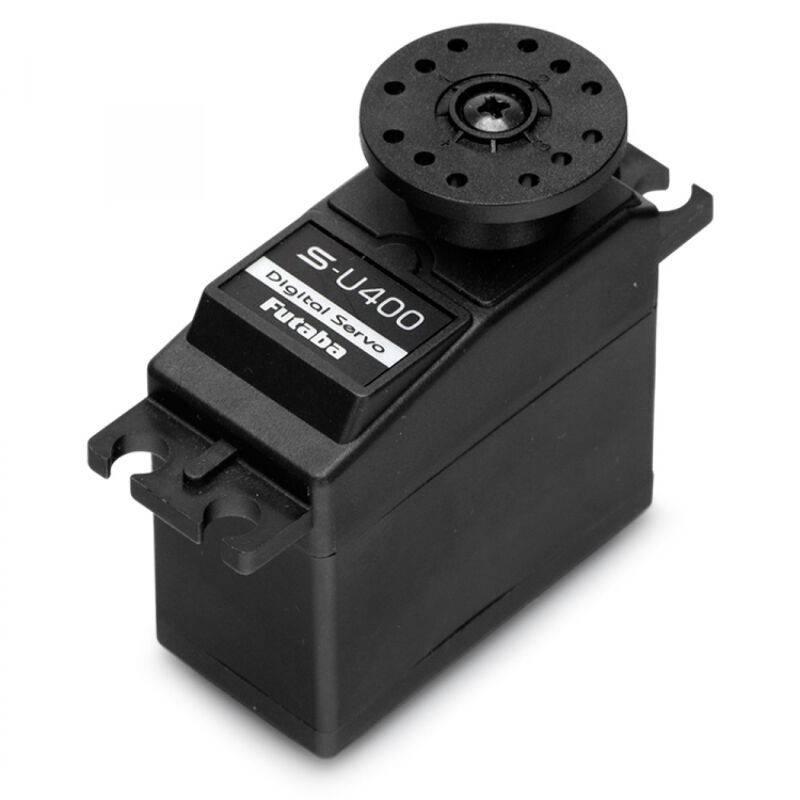

Futaba S-U400 Standaard HV Servo met SBUS2 (7,9 kg , 0,13s @ 7,4V)

Futaba S-U400 Standaard HV Servo met SBUS2 (7,9 kg , 0,13s @ 7,4V)

Futaba

FPS-U400

5 Op voorraad

€ 32,90 € 27,19 excl. BTW

Plastic Gears
High Voltage
S.BUS2
Rated Voltage: 6-7.4V
Operating Voltage: 4.8-8.4V
Power @ 6.6V: 7.1kg/cm
Speed @ 6.6V: 0.14s/60°
Power @ 7.4V: 7.9kg/cm
Speed @ 7.4V: 0.13s/60°
Size: 40 x 20 x 36.1 mm
Weight: 39g

Replace: S3010, S3152 & S3072HV

General Info

Brand: Futaba

Item Nr: FPS-U400

Barcode

Servo - Specs

Speed 60°/Sec @ 6.0V: 0,14

Speed 60°/Sec @ 7.4V: 0,13

Torque kg/cm @ 6.0V: 7,10

Torque kg/cm @ 7.4V: 7,90

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,00

Width (mm): 20,00

Height (mm): 36,10

Weight (g): 39,00

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 6.0V - 7.4V

Servo Protection: None

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Composite Gears

Servo Case: Composite Case

Connector: Futaba + Colored Lead
