C54-2D L Zweefvliegtuig 6,7:1 Competitie kv2520

Hacker

HACK10109920

Niet op voorraad

€ 619,00 € 511,57 excl. BTW

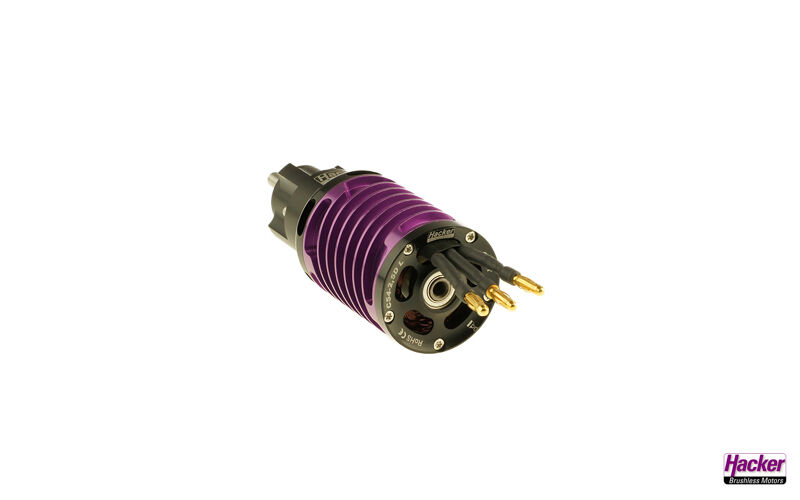

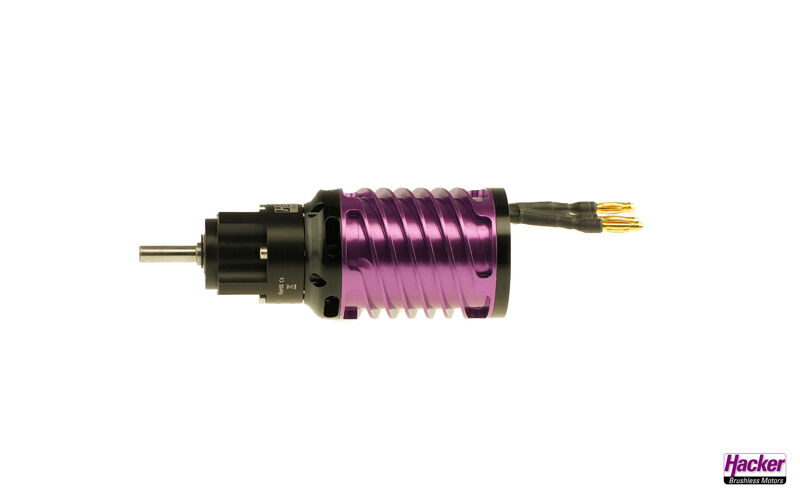

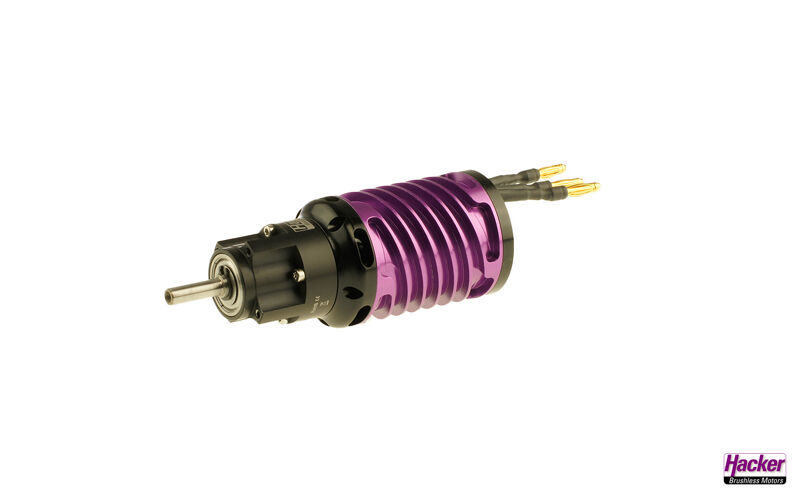

The Hacker C54 motors are compact 4-pole inrunner motors with 6.7:1 reduction gear and 6 mm shaft. In the competition version, this is the strongest internal rotor drive with a high efficiency at very low weight. The C54 gear drives are available in two lengths, both as a glider and acro variant.

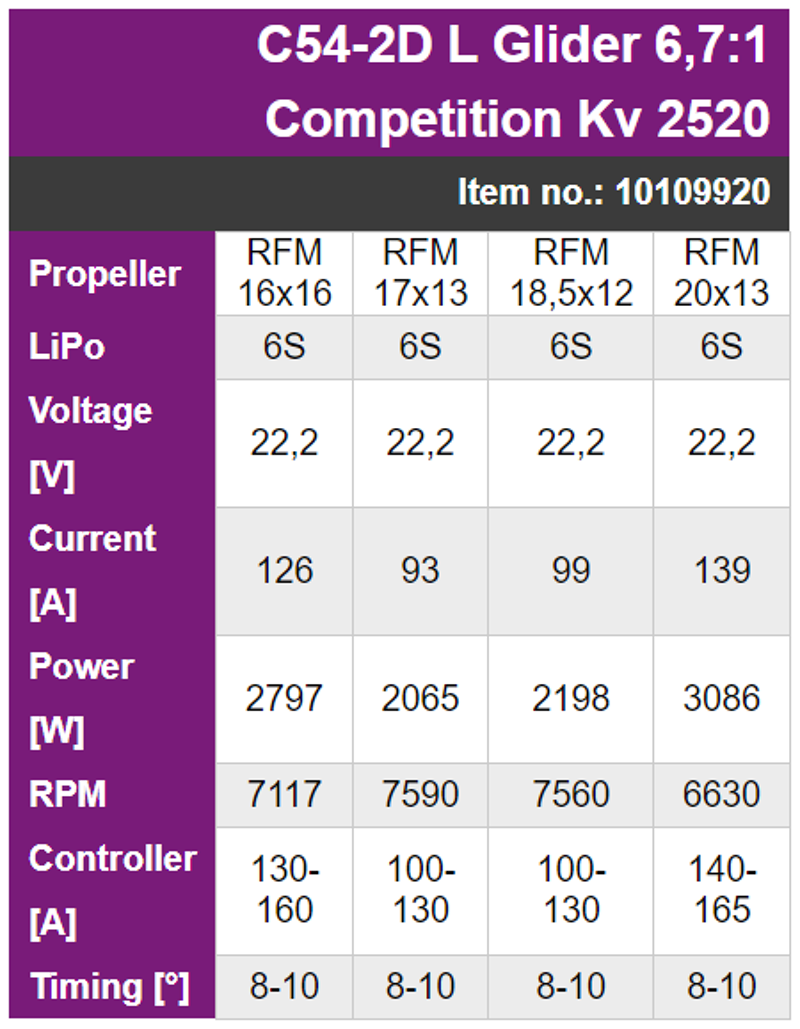

Drive recommendation

This design is recommended for gliders with a take-off weight of approx. 8 to 10 kilograms and 6S LiPo drive battery.

Also suitable in connection with the FesEx-Uni8 system.

General Info

Brand: Hacker

Item Nr: HACK10109920

Barcode: 4250320271581,00

Motor - Specs

Motor - Input Voltage Range (V): 6S Li-Po

Motor - KV (Rpm/V): 2520,00

Motor - Poles: 4-Pole

Motor - Switching Frequency (kHz): 8 kHz

Motor - Timing: 5-10

Motor - Turns (T): 2,00

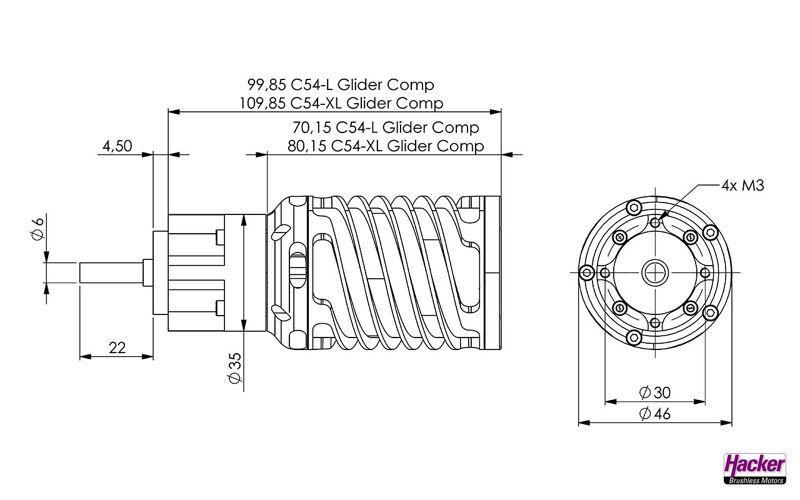

Motor - Dimensions

Motor - Dia. ø (mm): 46,00

Motor - Length (mm): 99,85

Motor - Shaft Dia. ø (mm): 6.0 mm

Motor - Weight (g): 445,00
