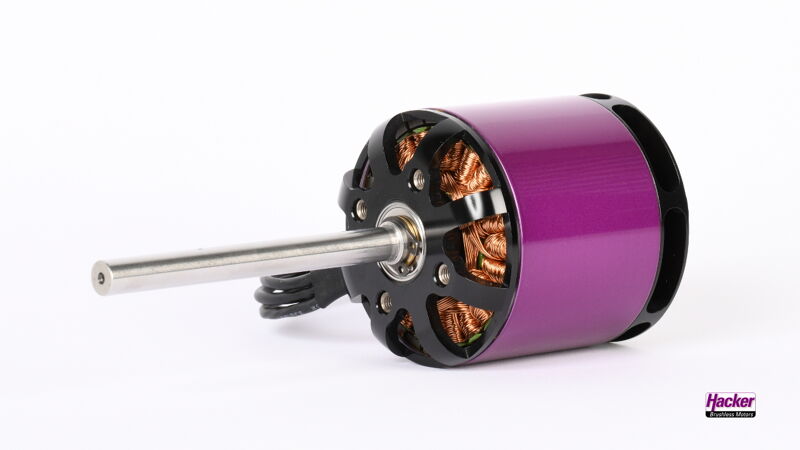

Hacker A60-8M V4 28-Polen Zweefvliegtuig kv180

Hacker

HACK15701908

Niet op voorraad

€ 303,99 € 251,23 excl. BTW

The A60-8M Glider is perfectly suited for large glider models of up to approx. 25 kilograms and 12S LiPo drive battery.

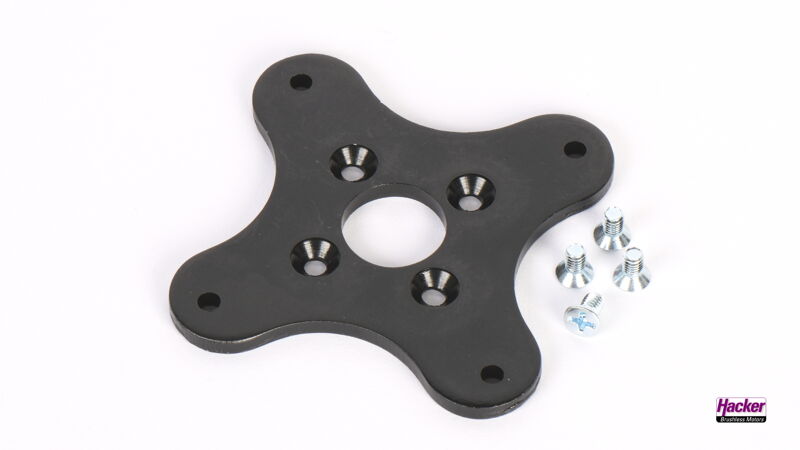

Thanks to its long shaft, the motor can be placed in the fuselage in such a way that either a scale spinner or a small center pole for the propeller can be used in front of the fuselage nose. The visual appearance of the fuselage is thus largely preserved. We recommend a support bearing in the nose of the fuselage (see tab "Accessories").

General Info

Brand: Hacker

Item Nr: HACK15701908

Barcode: 4250320256137,00

Motor - Specs

Motor - Input Voltage Range (V)

Motor - KV (Rpm/V): 180,00

Motor - Poles: 28-Pole

Motor - Switching Frequency (kHz): 8 kHz

Motor - Timing: 20-25

Motor - Turns (T): 8,00

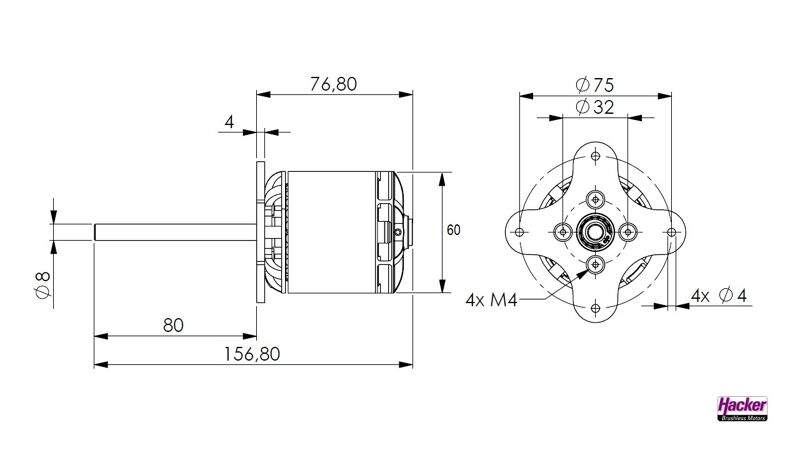

Motor - Dimensions

Motor - Dia. ø (mm): 60,00

Motor - Length (mm): 72,80

Motor - Shaft Dia. ø (mm): 8.0 mm

Motor - Weight (g): 751,00
