C54-1Y L Zweefvliegtuig 6,7:1 Competitie Kv 2745

Hacker

HACK38798777

Artikel op bestelling bij leverancier

Dit artikel hebben we niet op voorraad; het wordt voor u bij onze leverancier besteld. De levertijd is afhankelijk van de beschikbaarheid bij de leverancier.

€ 619,00 € 511,57 excl. BTW

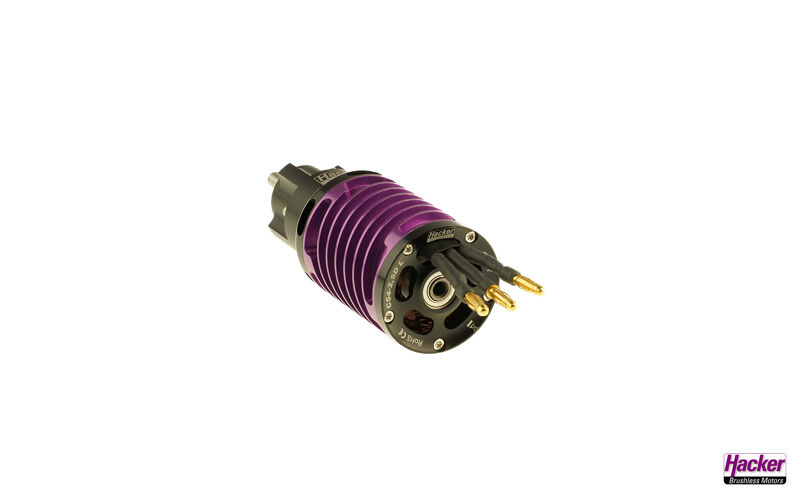

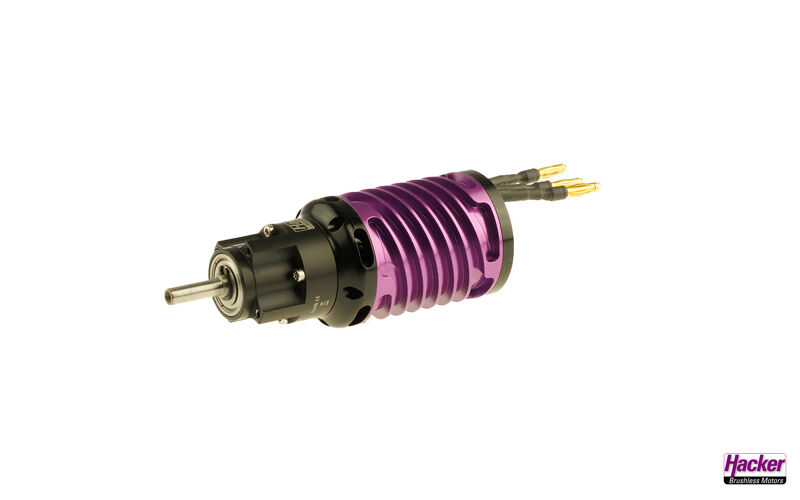

The Hacker C54 motors are compact 4-pole inrunner motors with 6.7:1 reduction gear and 6 mm shaft. In the competition version, this is the strongest internal rotor drive with a high efficiency at very low weight. The C54 gear drives are available in two lengths, both as a glider and acro variant.

This design is recommended for sporty gliders with approx. 6 to 8 kilograms take-off weight and 5S - 6S LiPo drive battery, also suitable in Connection to the FesEx-Uni8 system.

General Info

Brand: Hacker

Item Nr: HACK38798777

Barcode: 4250320265887,00

Motor - Specs

Motor - Input Voltage Range (V): 5S - 6S Li-Po

Motor - KV (Rpm/V): 2745,00

Motor - Poles: 4-Pole

Motor - Switching Frequency (kHz): 8 kHz

Motor - Timing: 5-10

Motor - Turns (T): 1,00

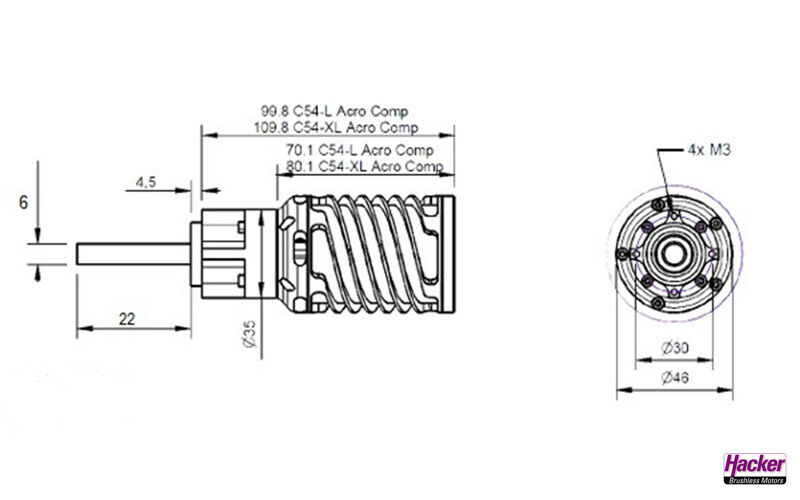

Motor - Dimensions

Motor - Dia. ø (mm): 46,00

Motor - Length (mm): 99,85

Motor - Shaft Dia. ø (mm): 6.0 mm

Motor - Weight (g): 445,00
