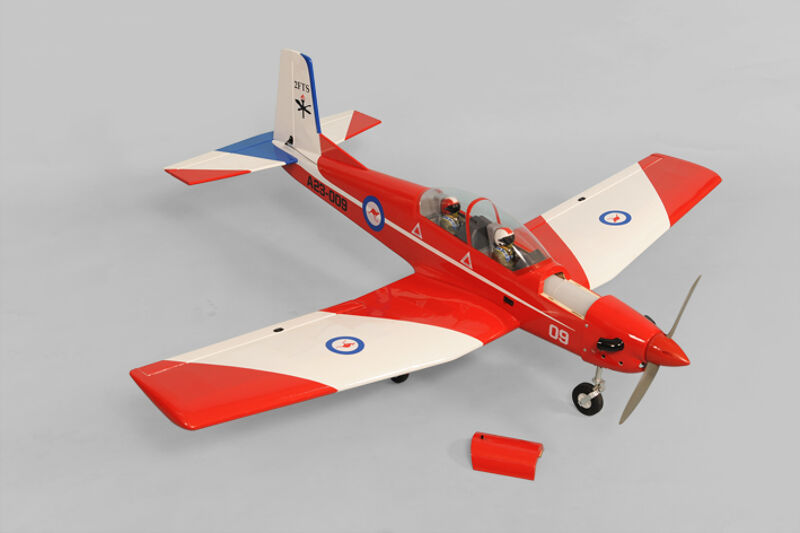

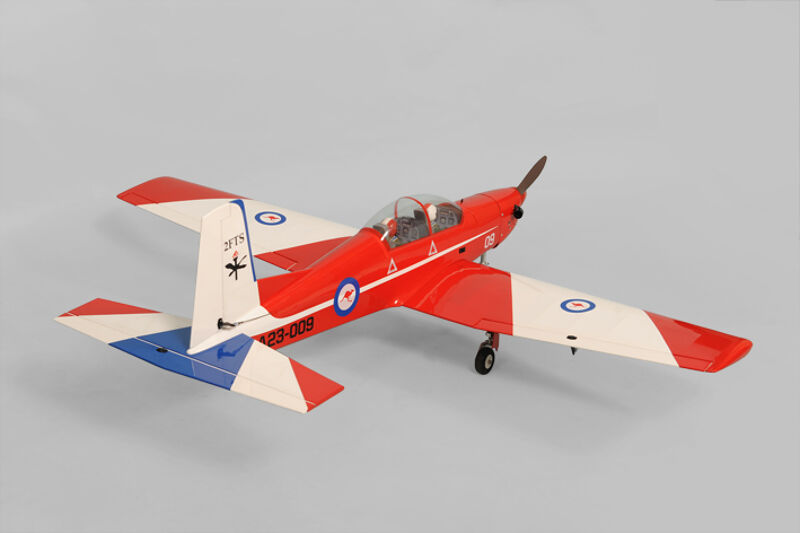

Phoenix Model - Pilatus PC9 1490mm GP/EP ARF Kit (With Electric Retracts)
Phoenix Model
PH230
Slechts 1 op voorraad
€ 319,01€ 263,65 excl. BTW

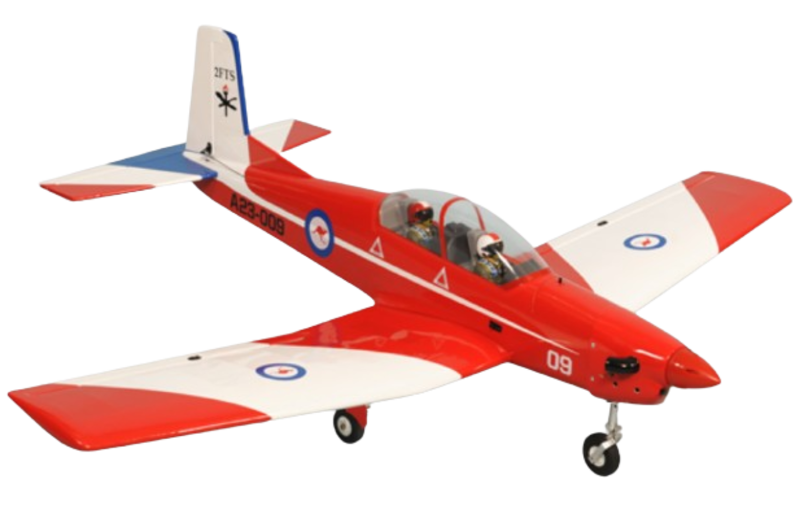

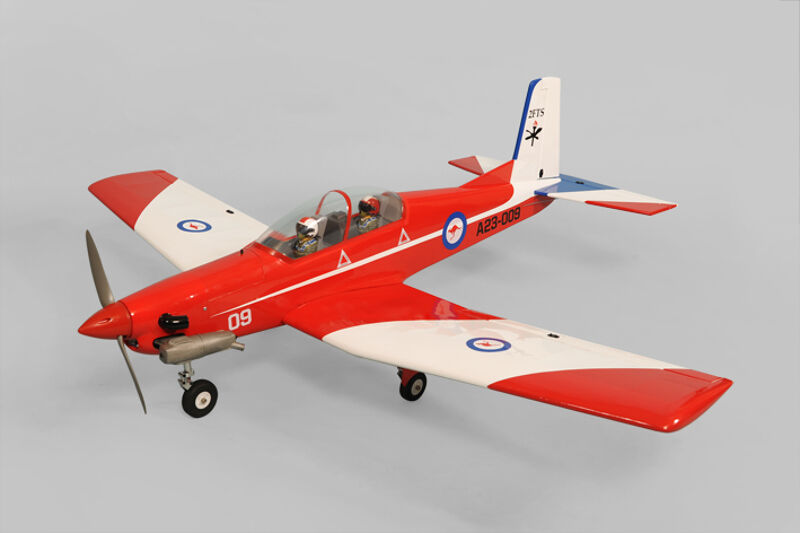

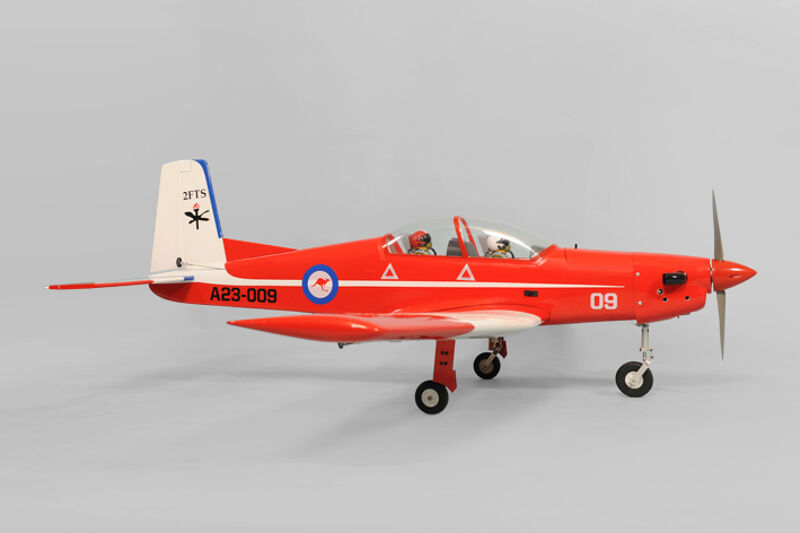

The PC-9 Pilatus from Phoenix is a true-to-original and precise aerobatic aircraft with a wingspan of 1.49m. The model is constructed in an extremely light and high-strength wooden construction and is designed for electric or combustion engines.

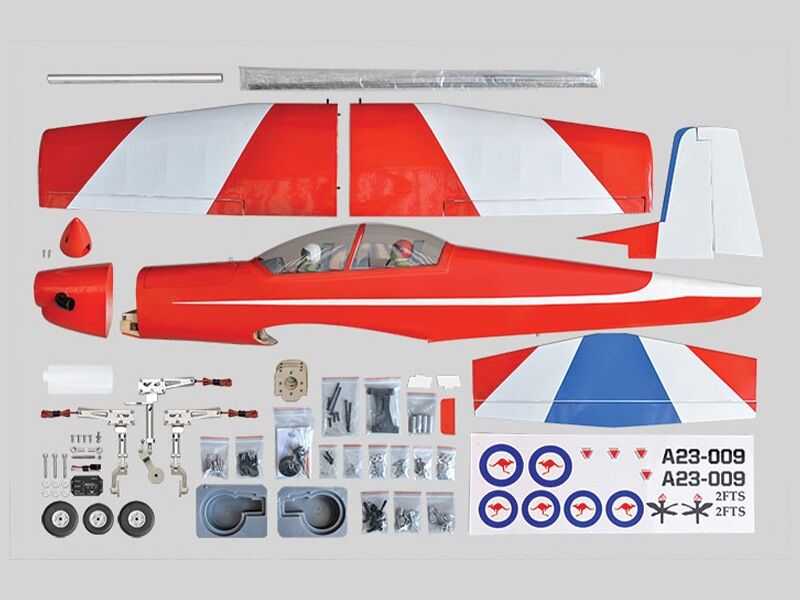

Wooden construction with an extremely high degree of prefabrication

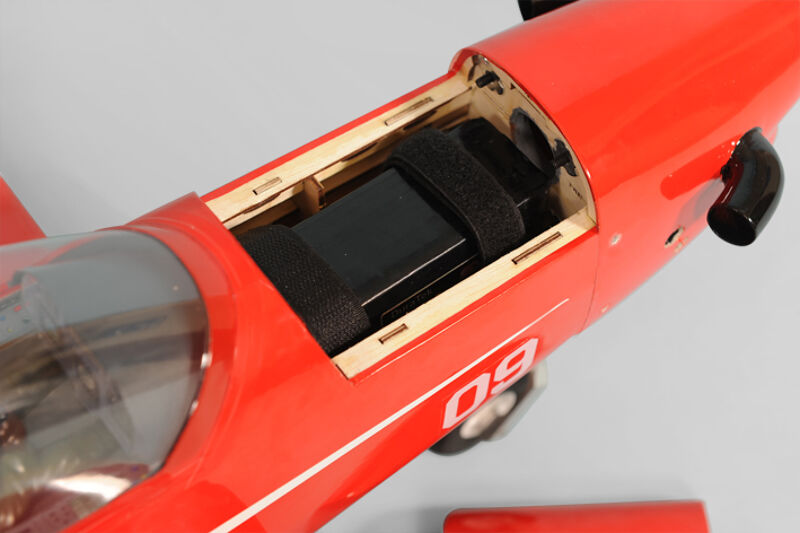

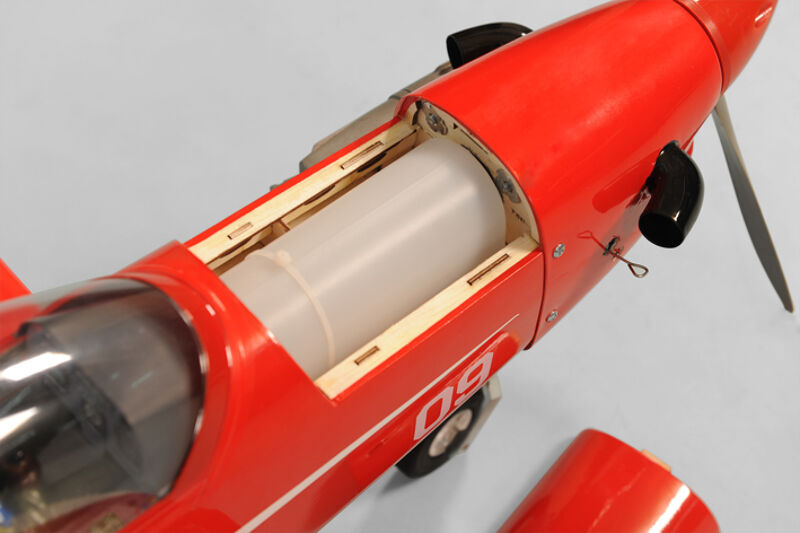

The model is made in an extremely light and high-strength balsa/plywood construction. The laser-cut construction impresses with an extremely high degree of prefabrication, which means that the construction effort is reduced almost to the installation of the drive and electronics. There is plenty of space under the removable canopy for installing the electronics. The PC-9 Pilatus is completely covered with foil.
Electric retractable landing gear included

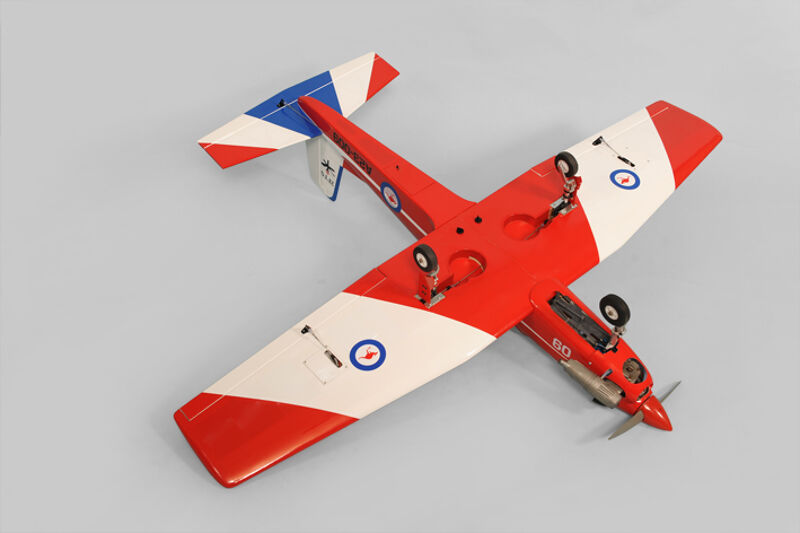

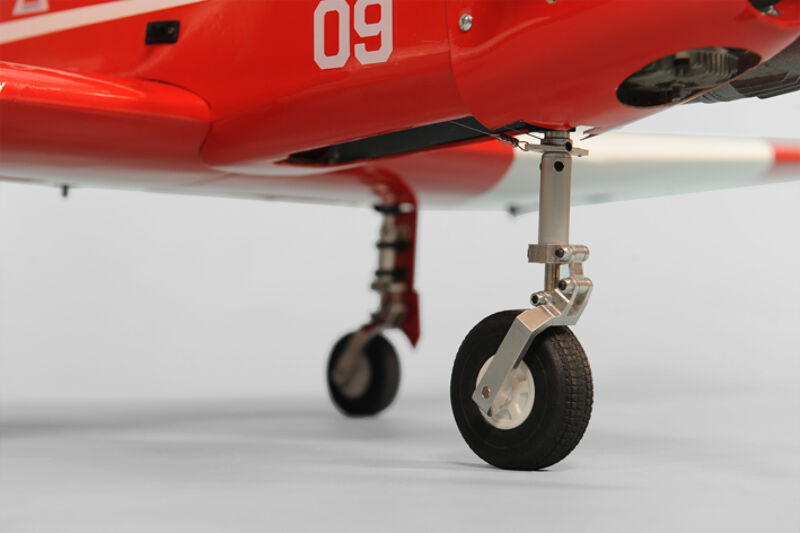

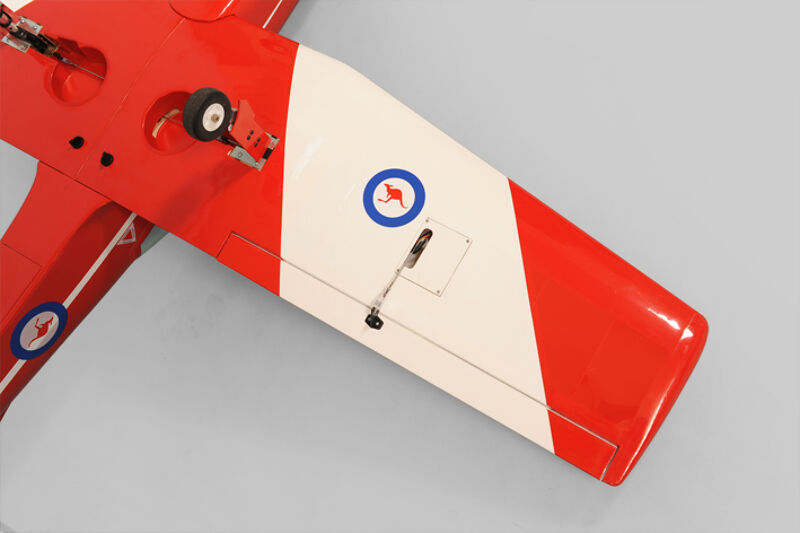

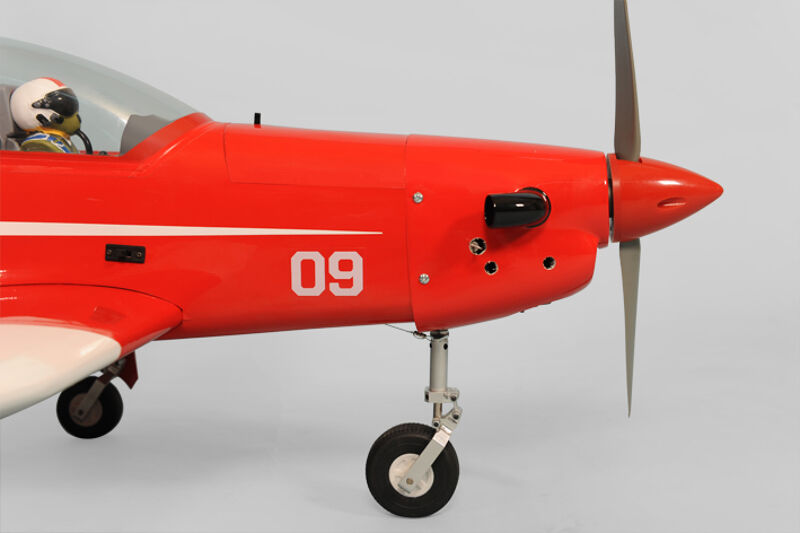

The model comes with an electrically retractable main landing gear and a spring-loaded nose gear. The landing gear legs are made entirely of CNC-milled metal.
Electric or combustion
This model can do both! The construction is prepared for both electric drive and drive with combustion engines. So the only question is: great sound or absolute efficiency?
Features:
Electric or combustion operation possible
Extremely light and high-strength, laser-cut balsa/plywood construction
High degree of prefabrication, fully covered and painted

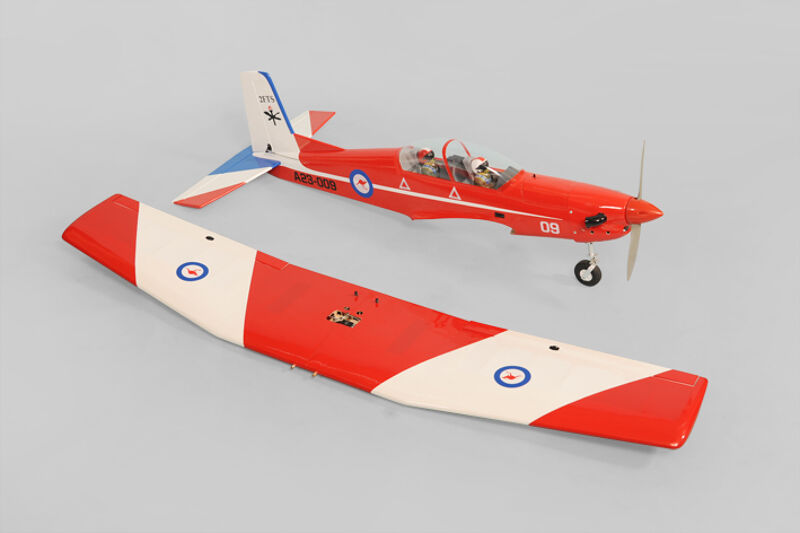

Removable wing for easy transport

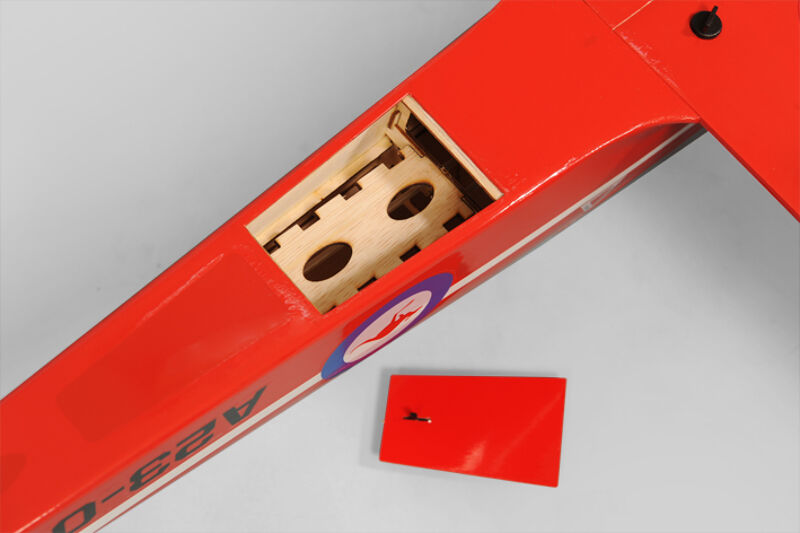

Removable covers

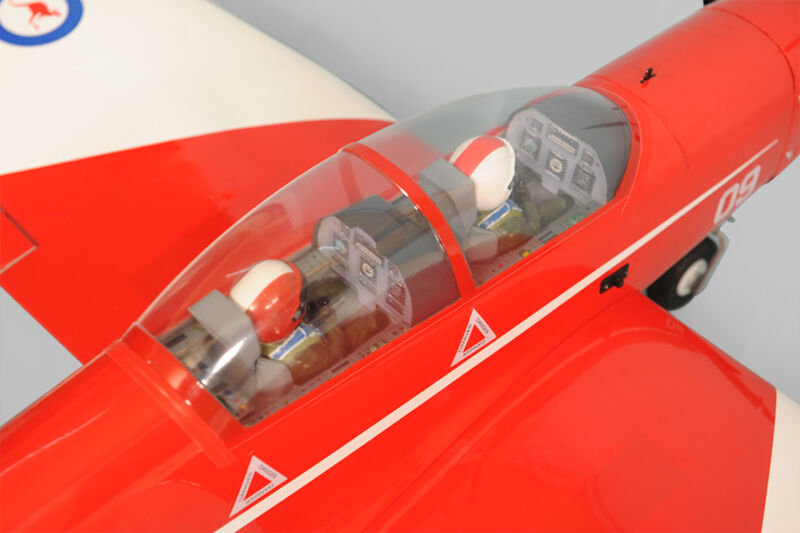

Detailed cockpit with 2 pilots
Many scale details
Includes electric metal retractable landing gear

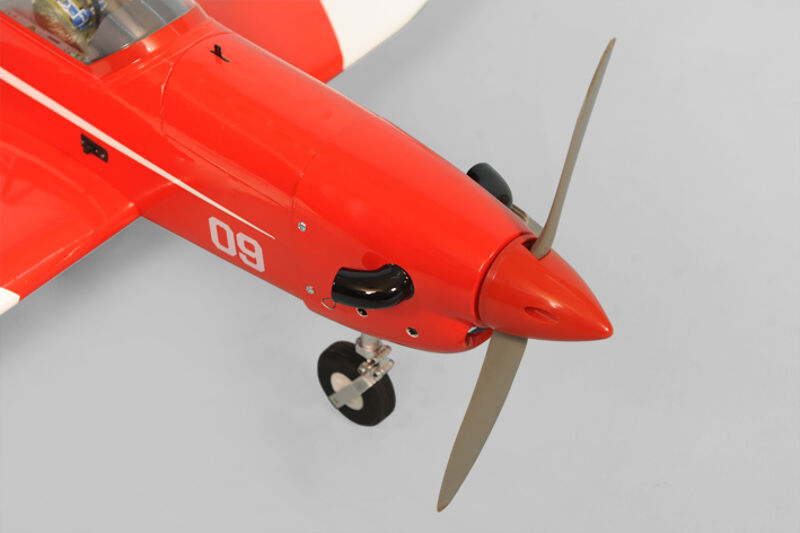

Includes 58mm spinner
Precise flight characteristics
Technical data:
Span: 1490 mm
Length: 1290 mm
Weight: 3400gr
Needed to complete :
Ailerons: 2x Servos
Elevator: 1x Servo
Rudder: 1x Servo
Front landing gear : 1x Servo
Motor (optional) : 1 Servo

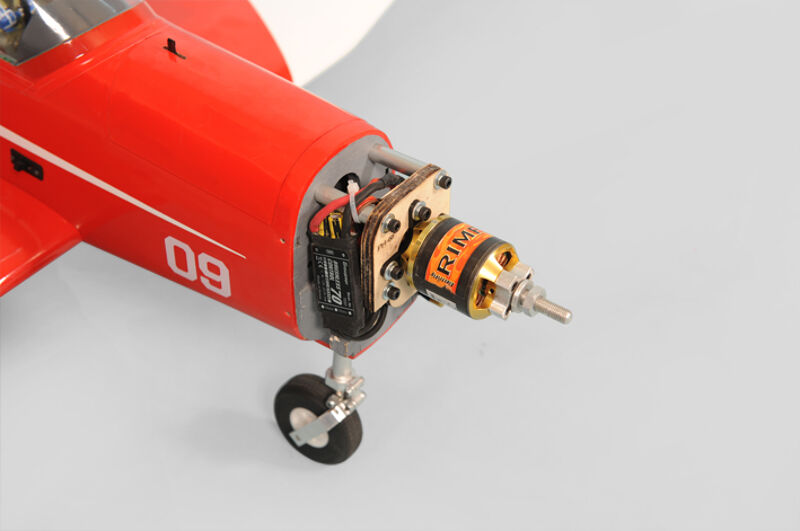

Brushless motor: D-Power AL42-06
Brushless motor set: D-Power SET BL-Motor AL42-06 & ESC 60
Battery 5000mAh 6S 22,2V Lipo

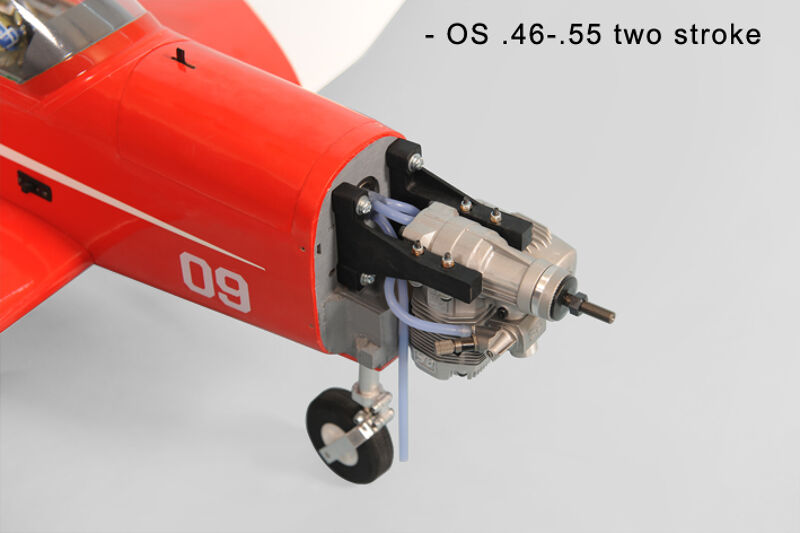

Combustion engine : Motor 7-10ccm (ONLY FOR GAS VERSION)
General Info
Brand
Phoenix Model
Item Nr
PH230
Airplane - Specs
Material
Wood
Wingspan (mm)
1490,00
Model Length (mm)
1270,00
Take-off Weight (g)
3400,00
Airplane - Functions
Controls
Motor
Rudder
Retractable Landing Gear
Elevator
Ailerons
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Required Battery (Not included)
Li-Po 6S - 5000mAh - Min. 25C
Airplane - Electronics
Receiver
Not Included
Qty of Servos
5x Servos | 1 optional for GAS motor (Not Included | See Needed to complete)
