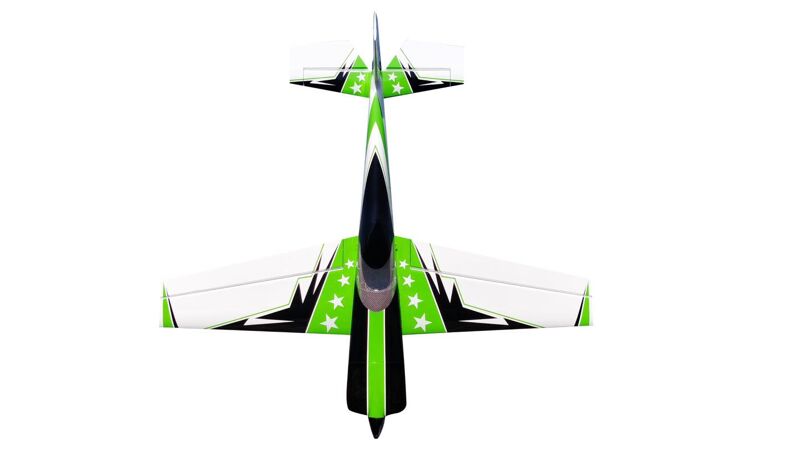

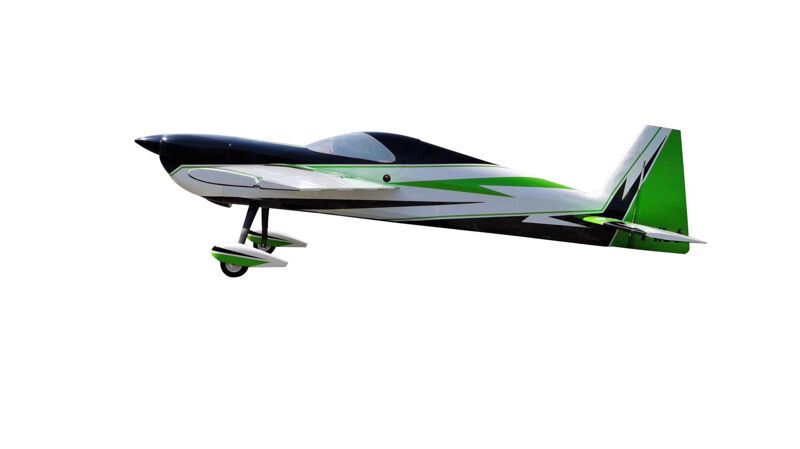

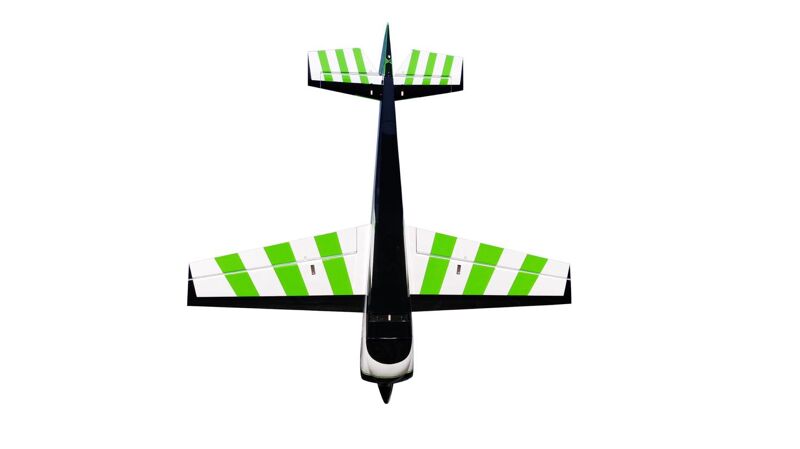

Pilot RC - Laser 88", Green/White/Black ARF Kit (Scheme 07)
Pilot-RC
PILLAS88C07
Niet op voorraad
€ 949,01€ 784,31 excl. BTW
It has arrived! The 60cc version of our rule changing Laser!
Fully designed from the ground up for out and out performance, keeping in line with current demand for faster, more aggressive and more agile models, while still keeping the well know great flying characteristics Pilot-RC models are known for.
You really need to see the videos of this model in action to understand its capability. In this case, its not a question of if the plane is quick enough, its whether you can keep up!
SPECIFICATIONS:
Model:
Laser – 30%
Wingspan:
88″ (2.240mm)
Length:
83.5″ (2.120mm)
Wing area:
1,291 “² (8,330 cm²)
Weight:
17.75lbs (8.0kg) with GP61cc
FEATURES:
NEW! Full Carbon reinforced fuselage and wing using carbon laminated wood.
NEW! Patented quick assembly system for wings and elevators.
NEW! Patented quick assembly system for canopy.
Genuine German Oracover (Ultracote) covering
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and pinned)
Easy canister installation due to open construction
Removable rudder (as well as removable wings and stabs)
Laser engraved motor mounting position
Push-Pull system and Pull-Pull systems available for Rudder servos
Cowl fits both single cylinder and twin cylinder engines! (DA70, DLE60, GP76)
INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pull-pull wires and pushrods with ball links
Matching carbon spinner, 3.5″
REQUIRED HARDWARE:
Motor: 50-76cc or equivalent electric
Servos: 5 high torque (minimum 20kg) plus throttle // Uses x1 per aileron, x1 per elevator and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
CENTER OF GRAVITY:
164mm - Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
General Info
Brand
Pilot-RC
Item Nr
PILLAS88C07
Airplane - Specs
Material
Wood
Wingspan (mm)
2240,00
Model Length (mm)
2120,00
Take-off Weight (g)
8000,00
Airplane - Functions
Controls
Rudder
Ailerons
Motor
Elevator
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Required Battery (Not included)
Li-Po 12S - 5000mAh - Min. 25C
Airplane - Electronics
Receiver
Not Included
Qty of Servos
5x Servos | 1 optional for GAS motor (Not Included | See Needed to complete)
