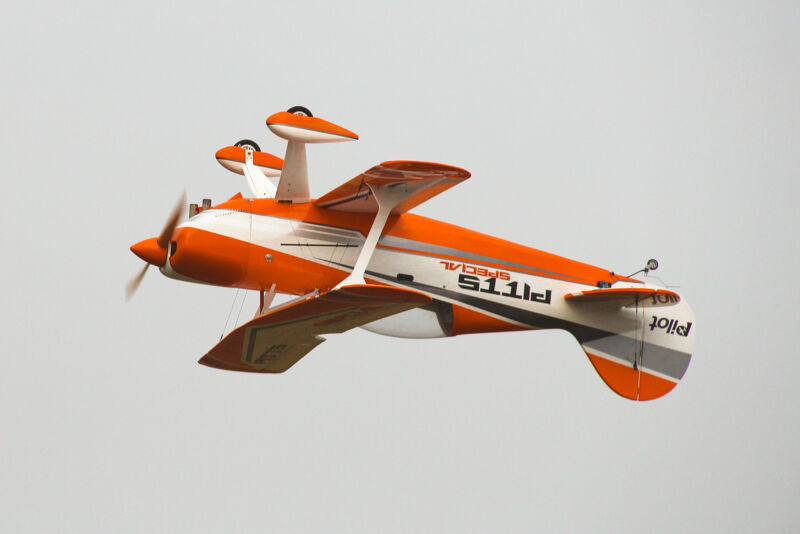

Pilot RC - Pitts Special S2B 73", Orange/White/Grey ARF Kit (Scheme 01)
Pilot-RC
PILPITS2B73C01
Niet op voorraad
€ 1.149,00€ 949,59 excl. BTW
Bring on the fun, with what is probably the best looking biplane out there. Fear not about long setup times of traditional biplanes, Pilot-RC’s innovative and patented systems allow you to have the model completely put together in under 5 minutes, to then unleash the acrobatic and 3D monster that our Pitts.
SPECIFICATIONS:
Model:
Pitts S2B
Wingspan:
73″ (1,867mm)
Length:
71″ (1,760mm)
Wing area:
1,720 “² (1,109 cm²)
Weight:
20.8lbs (9.7kg)
FEATURES:
NEW! Pilot-RC new and patented quick release system for fast wing mounting at the field.
NEW! Pilot-RC new quick release system for wing tension wires.
Special Pilot-RC no screw canopy. Quick release with new security latch design.
Strong but light, specially developed for precision acrobatic and extreme 3D flying
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and pinned)
Internally mounted cowling – so no external screws exposed
Removable wings , wing stuts and stabs.
Laser engraved motor mounting position
INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fiber main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pushrods with ball links
Matching carbon spinner, 4″
REQUIRED HARDWARE
Motor: 50-76cc
Servos: 7-8 high torque plus throttle // Uses x1 per aileron (total x4), x1 per elevator and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories…
General Info
Brand
Pilot-RC
Item Nr
PILPITS2B73C01
Airplane - Specs
Material
Wood
Wingspan (mm)
1867,00
Model Length (mm)
1760,00
Take-off Weight (g)
9700,00
Airplane - Functions
Controls
Motor
Ailerons
Rudder
Elevator
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Airplane - Electronics
Receiver
Not Included
Qty of Servos
8x Servos | 1 optional for GAS motor (Not Included | See Needed to complete)
