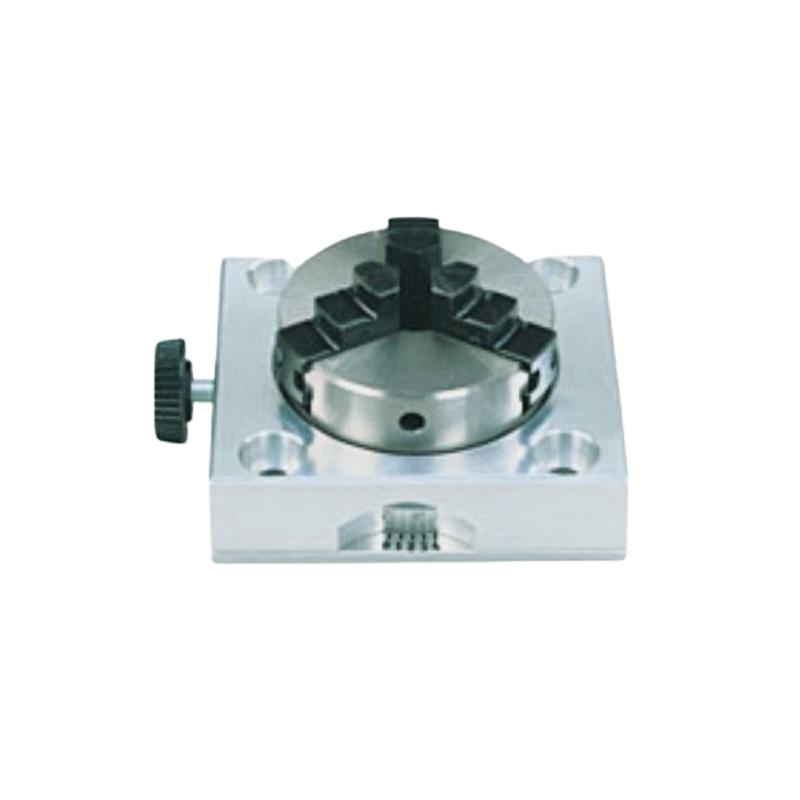

For machining circular workpieces, drilling and milling offset on the radial axis, surface milling of keys, square and hexagonal profiles, etc. Scale accurate to the degree with vernier mounted on the base body. Chuck with reversible jaws: internal clamping range from 1.5 to 32 mm, external from 12 to 65 mm. Chuck passage 11 mm (for machining long shafts in vertical position). With mounting holes for horizontal and vertical mounting, as well as suitable slides and mounting screws for mounting on the MICRO-milling machine MF 70 and the MICRO-coordinate table KT 70. Size 72 x 64 x 38 mm. In wooden case with sliding lid.
FEATURES
- Clamping range inside: 1.5 - 32 mm
- Clamping range outside: 12 - 65 mm
- Free passage: 11 mm
- Size: 72 x 64 x 38 mm
