Robbe - Slider Q Glider 1990mm High Performance Kit
Robbe
ROB2688
Trade prices excl. BTW
1/€ 230,58
Slechts 1 op voorraad
€ 279,00€ 230,58 excl. BTW

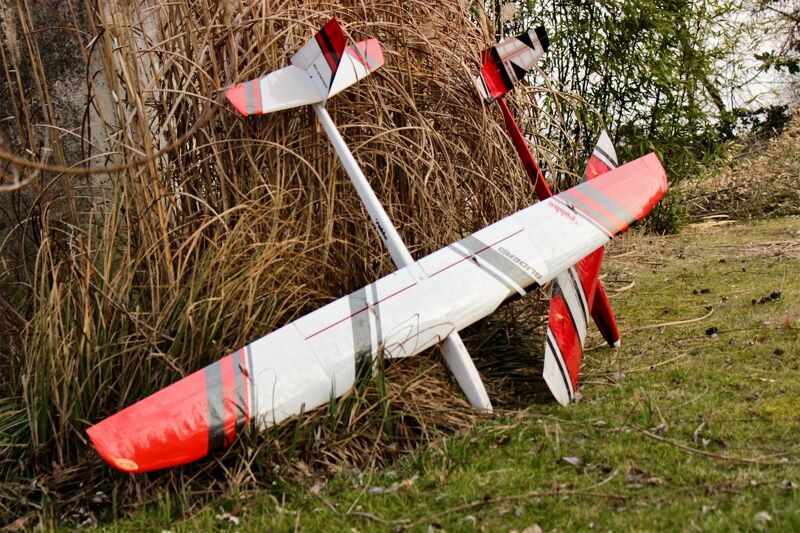

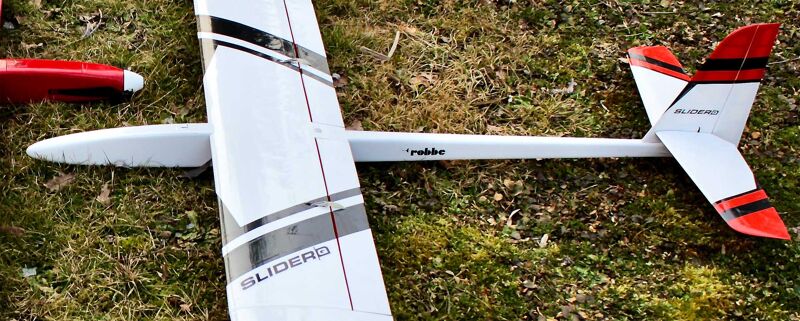

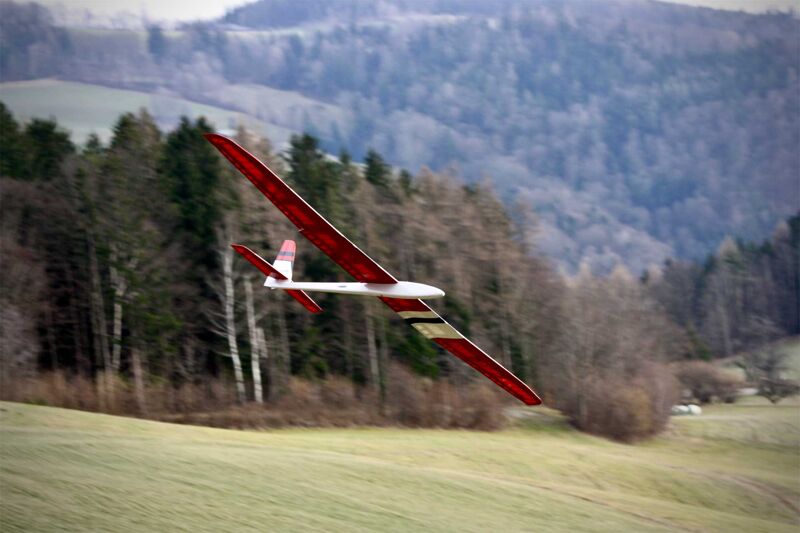

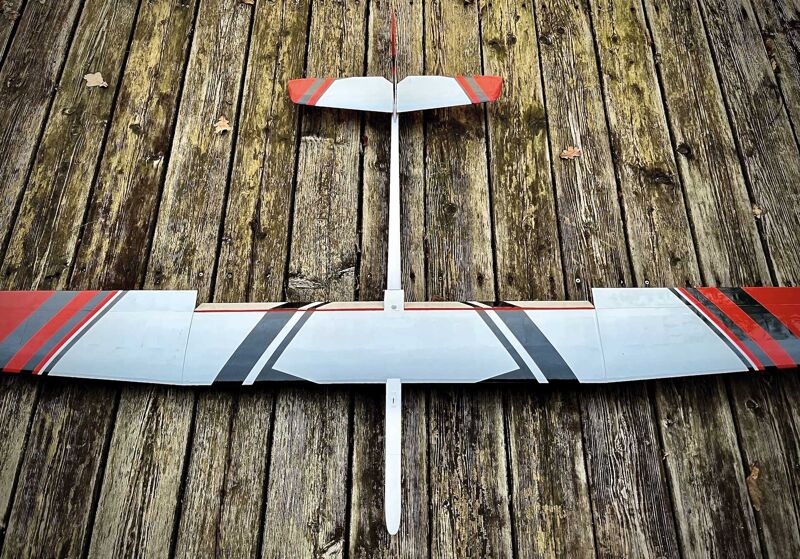

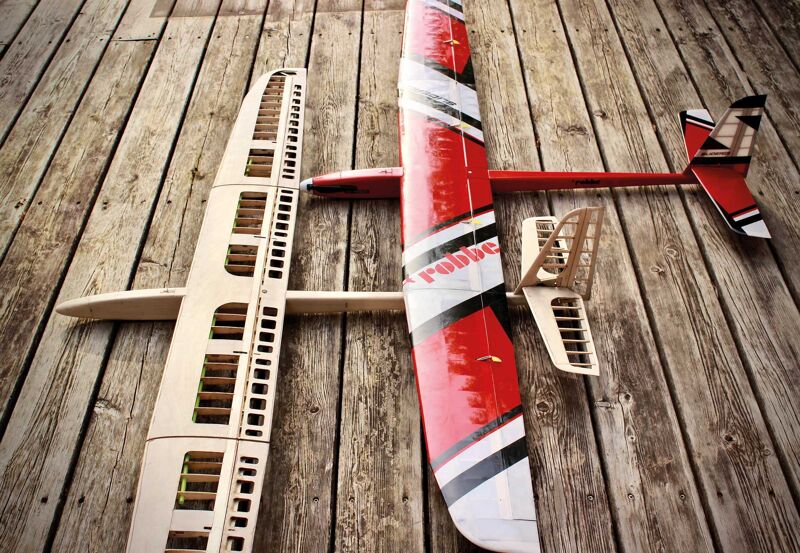

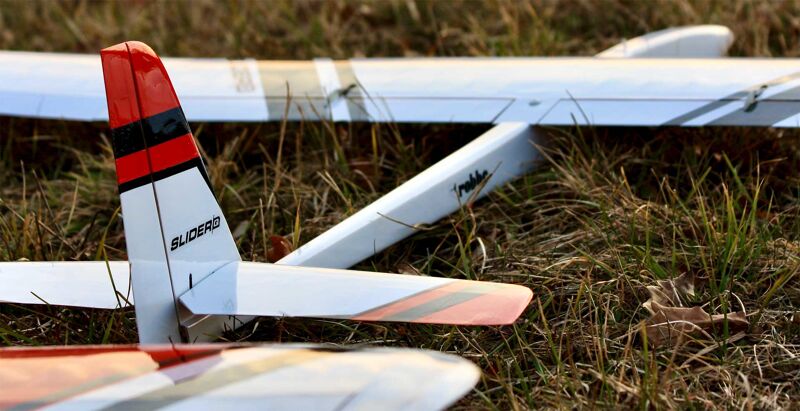

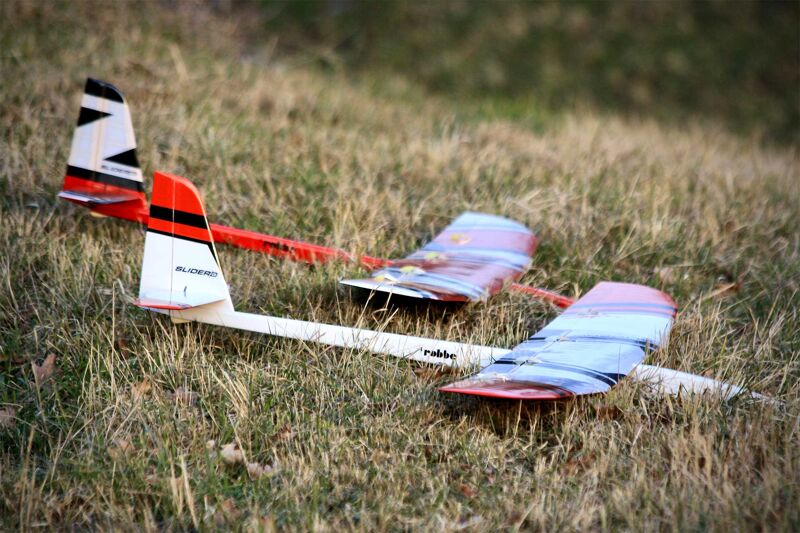

"SLIDER Q" is a high performance glider model in revolutionary plywood/balsa construction with a 4 flap wing. This construction method enables extraordinary strength in combination with low weight and represents the link to the full GRP/CFRP shell construction. The model has outstanding all-round flight characteristics and, thanks to the innovative construction, is also convincing in terms of flight dynamics. By using the flaps, the range of use can be individually shifted, either towards thermals, or more towards flight dynamics. In addition, the butterfly configuration enables steep approaches and precise landings.

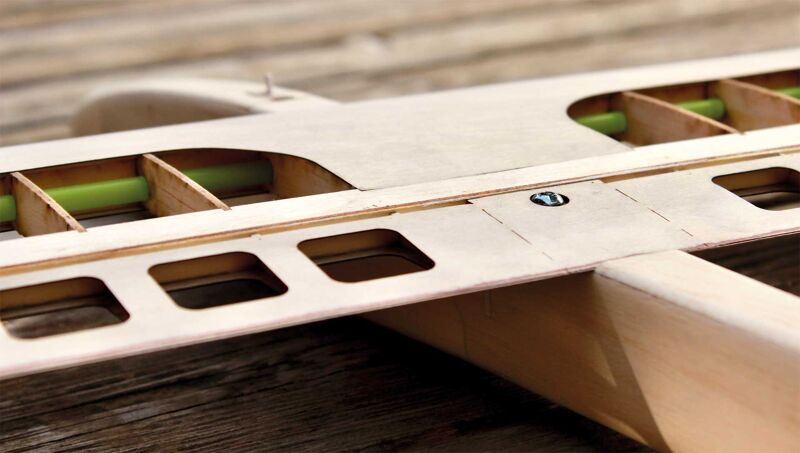

The model has removable outer surfaces for better transportability. All servo cable connections are made automatically with plugs in the root ribs or spring-loaded contacts between fuselage and wing.

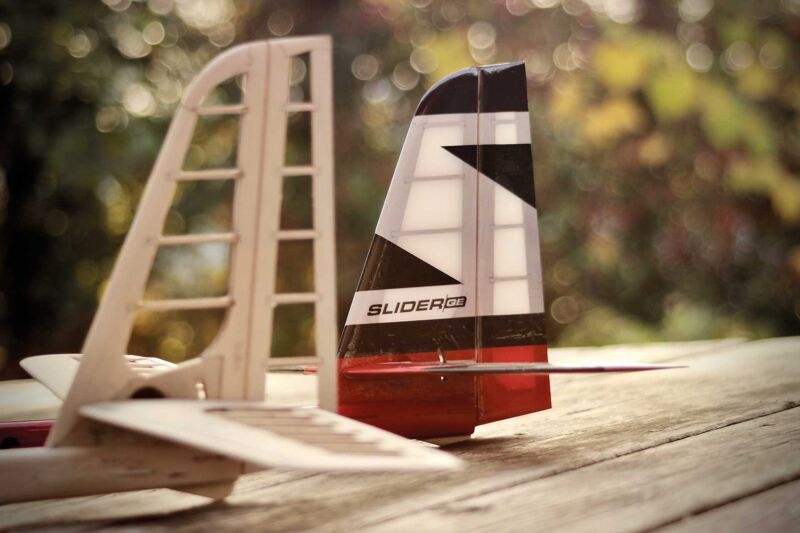

The pendulum elevator is ball bearing mounted for optimum precision.
The extensive kit with many parts is made of carefully selected wood and includes all necessary wooden parts as well as small material such as wing plugs, GRP rudder horns, hinges etc.
Assembly is quick and easy thanks to many building aids such as auxiliary frames for the fuselage and wing, but requires experience in working with more complex wooden kits.
Extensive illustrated building instructions and a 1:1 construction plan are also included.
The model is completely developed and manufactured in Austria.
Technical data :
Wing-span (mm) : 1990
Flight weight approx. (g) : 900
Control : H,S,Q,WK
Length (mm) : 1030
Manufacturer : Robbe Modellsport

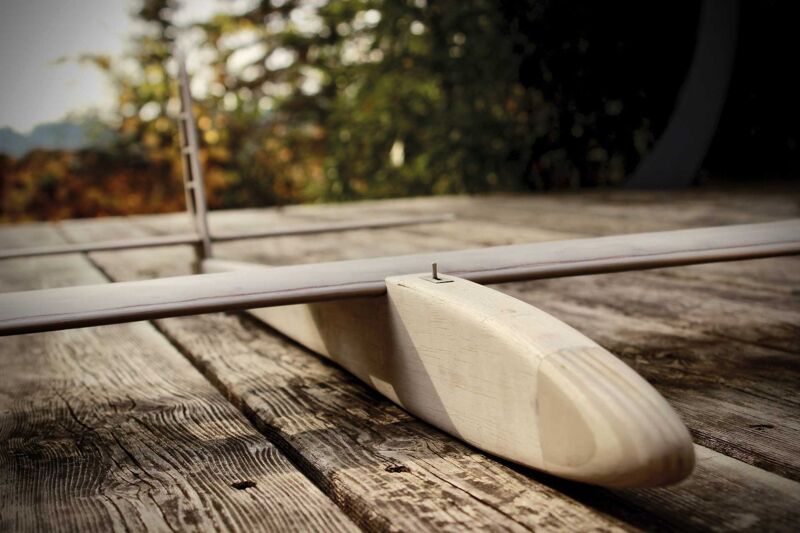

Fuselage : Wood

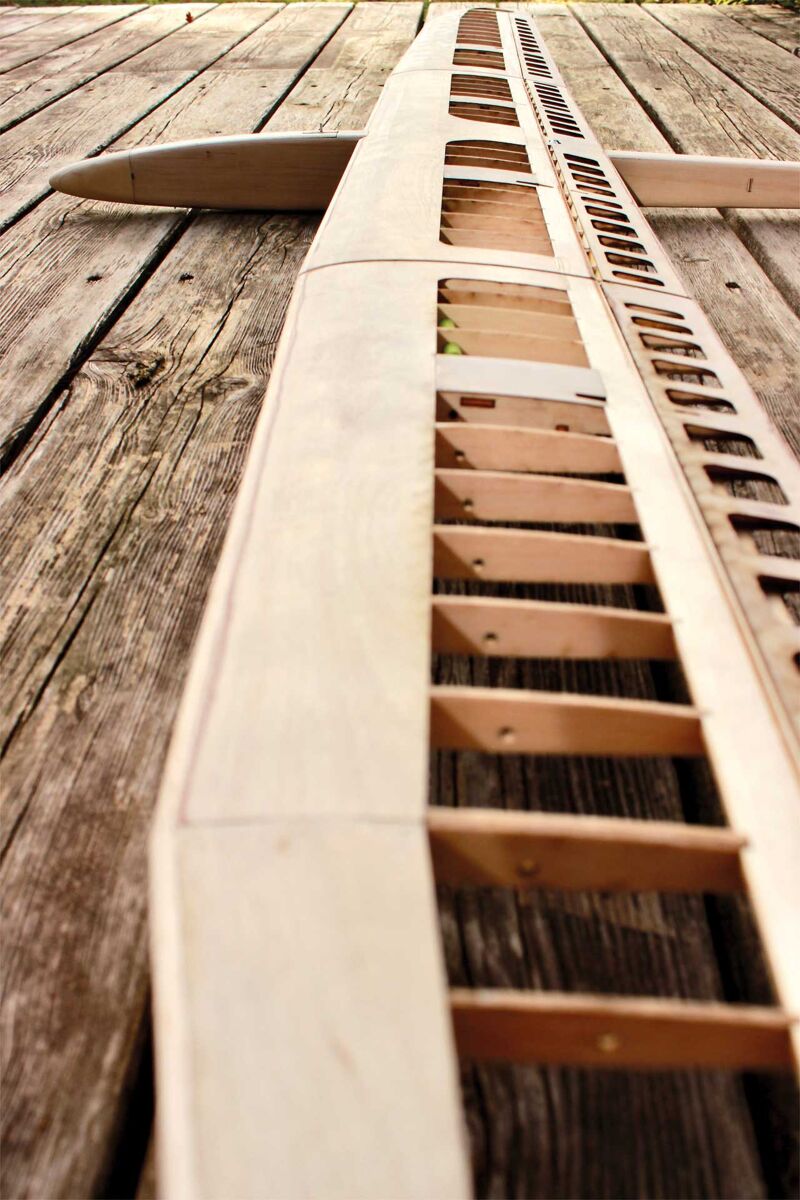

Wings : Wood/rib construction
Version : KIT
Flight Skill : Advanced
Build Skill : Advanced
Drive Type : Without
Box contents

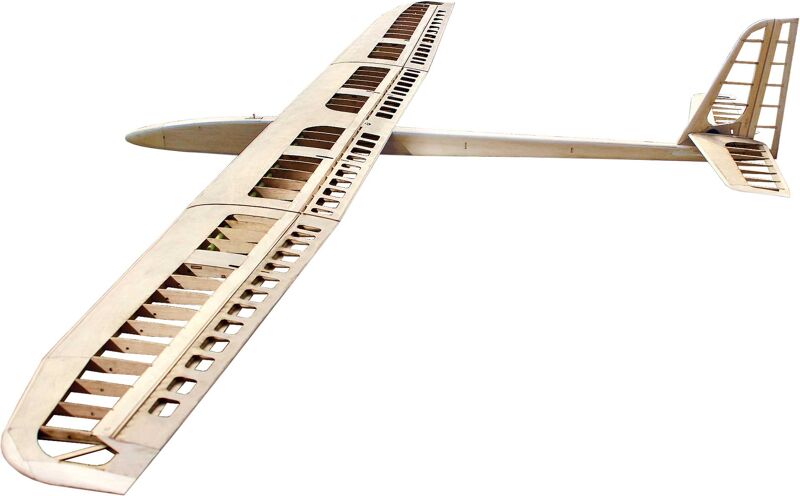

All wooden parts required for construction made of precisely laser-cut balsa, poplar or birch plywood
Construction slipway for wing and tailplane made of poplar plywood
Small material for rudder linkages
Various screws and nuts
GFK rudder horns
Various GFK milled parts
CFK wing plug-in

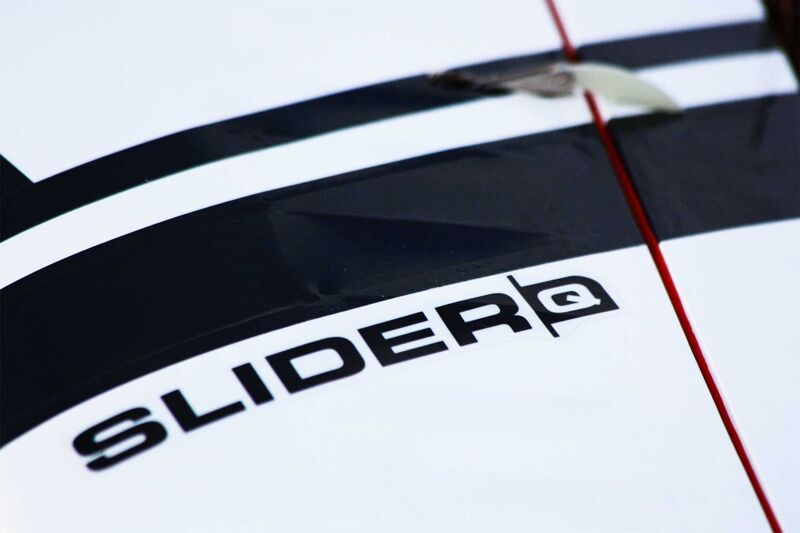

Decal kit
Comprehensive illustrated instructions in German, English, French
General Info
Brand
Robbe
Item Nr
ROB2688
Airplane - Specs
Material
Wood
Wingspan (mm)
1990
Model Length (mm)
1030
Take-off Weight (g)
900
Airplane - Functions
Controls
Ailerons
Flaps
Rudder
Elevator
Required Radio (Not included)
Min. 6 Channel
Airplane - Electronics
Receiver
Not Included
Qty of Servos
6x Servos | (Not Included | See Needed to complete)
